fischer Threaded Rod FIS AM 10x130 gvz steel grade 5.8

The FIS A versatile rod anchor

Price : 1132.80 ₹
Available Product Variants
Top Features
  • The universal solution for various fischer injection mortars. For a manageable range and simpler storage.
  • Approved for anchorage in cracked and non-cracked concrete, solid brick masonry, perforated masonry, and aerated concrete in combination with various fischer injection mortars.
  • Optimum load adaptation due to variable anchorage depths. This lowers installation and material costs.

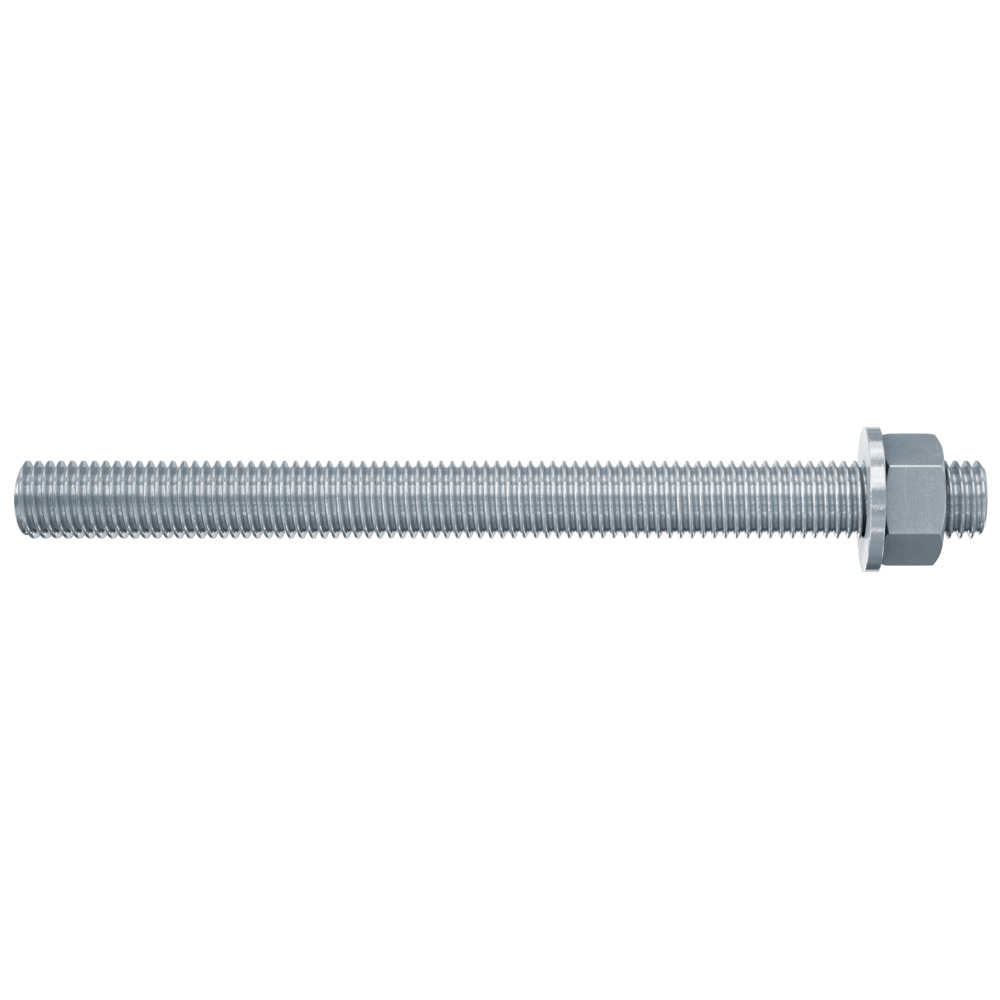

Product Picture

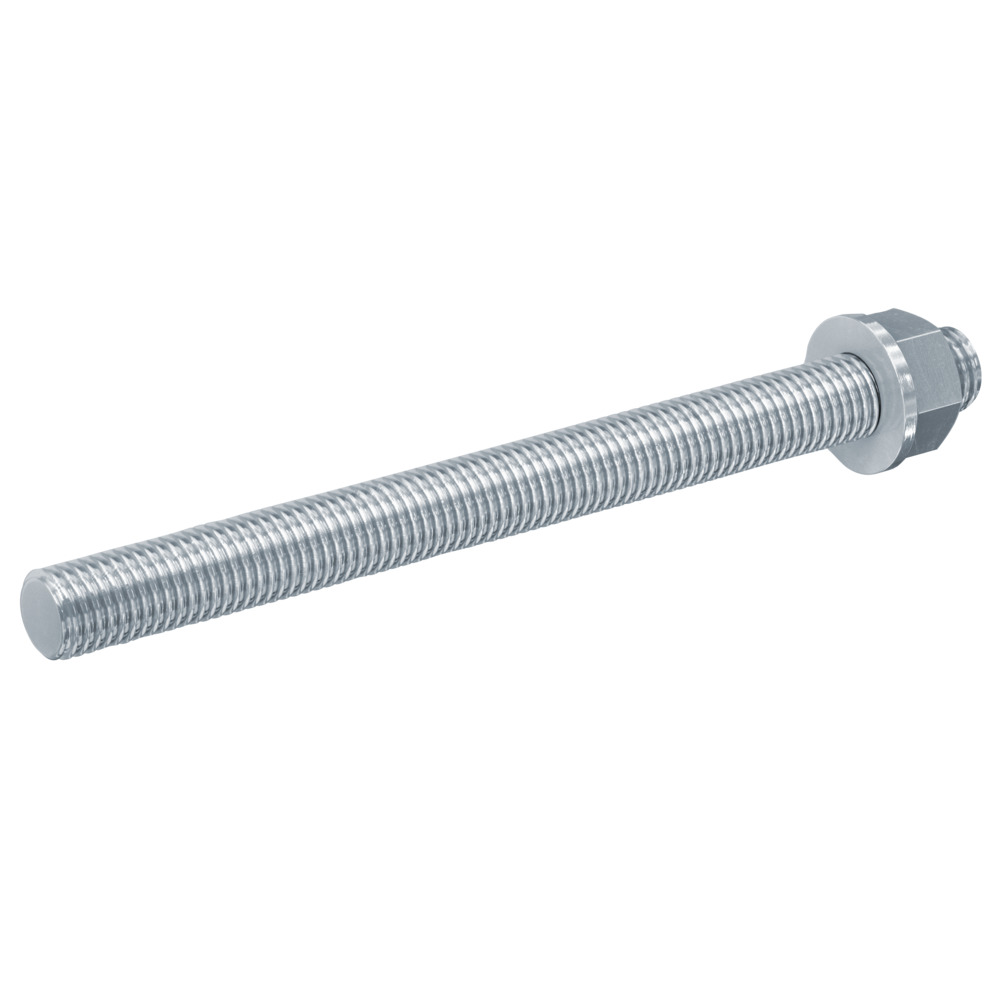

Product Picture
Product Picture
Application Picture
1   3
Variant Art.-No. 90279 fischer Threaded Rod FIS AM 10x130 gvz steel grade 5.8
ETA-approval
Drill diameter 12 [mm]
Packaging Folding-box
Quantity/pack 10 [St.]
GTIN (EAN-Code) 4006209902790
Price / Pack 1132.80 ₹
The fischer threaded rod FIS A is a system component for use with the fischer injection mortars FIS PM, FIS SB, FIS EM Plus, FIS EB, FIS V, FIS VL, FIS P Plus, FIS P, and FIS GREEN. In accordance with the relevant approval of the injection mortar used, the threaded rod is suitable for the fixation of steelwork constructions, staircases, and machines into numerous building materials both inside and outside. The extensive assortment in diameters M6 - M30, different lengths, and different steel grades enables extremely diverse applications. The approvals of the various injection mortars must be observed.
Advantages
  • The threaded rod FIS A can be used with almost every fischer injection mortar (except Highbond special mortar FIS HB). It can be individually selected based on requirements, thus allowing for a wide range of applications.
  • The wide range of approved threaded rods FIS A from M6 to M30 allows for various applications.
  • Please refer to the approvals of the injection mortar used.
