fischer Drop-in Anchor EA M6 N

The cost-effective hammerset anchor without approval for multiple fixings in non-structural systems

Price : 1206.00 569.00 ₹
Available Product Variants
Top Features
  • Simple hammerset installation.
  • The metric internal thread allows for the use of standard screws or threaded rods for ideal adaptation in line with the intended use.
  • The hand setting tool EA-ST facilitates fast installation.

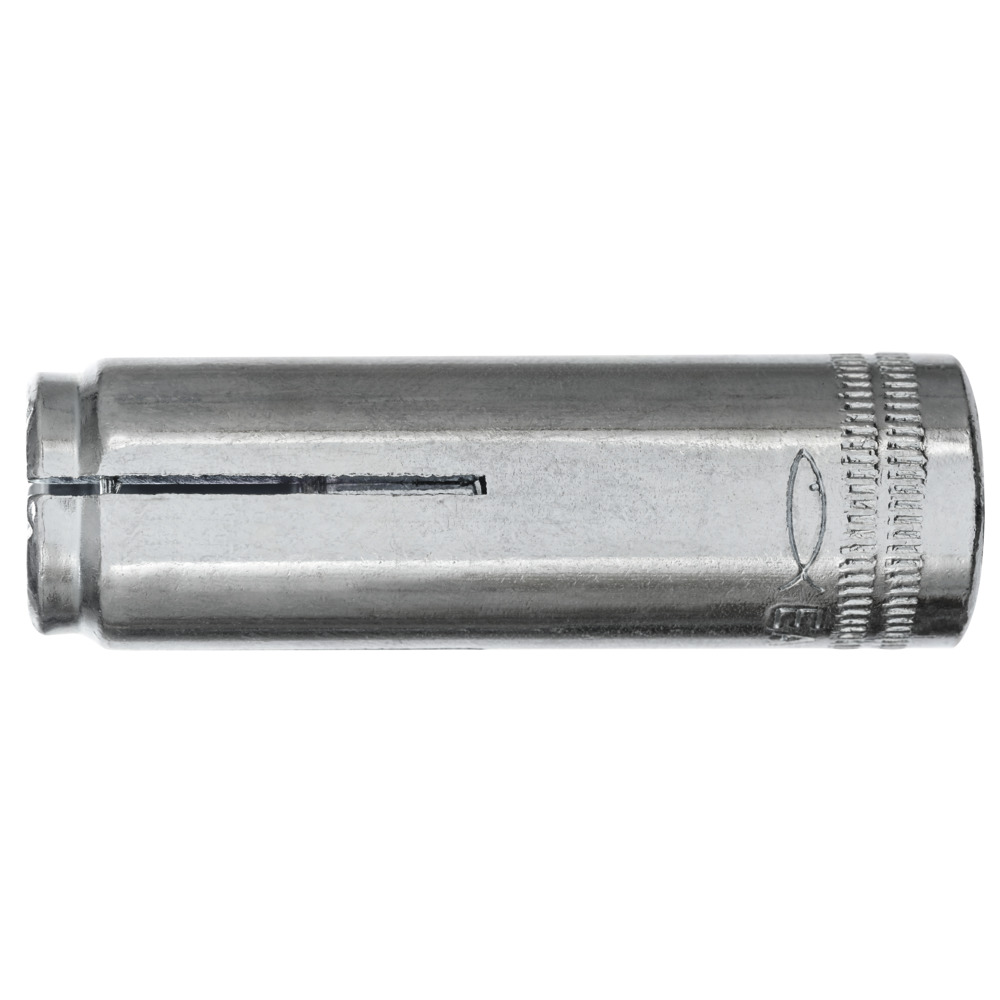

Product Picture
Application Picture
Application Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 90159 fischer Drop-in Anchor EA M6 N
ETA-approval
Anchor length 25 [mm]
Internal thread M-6
Min. bolt penetration 6 [mm]
Max. bolt penetration 12 [mm]
Packaging Folding-box
Quantity/pack 100 [St.]
GTIN (EAN-Code) 4006209901595
Price / Pack Price : 1206.00 569.00 ₹

Product Description

The fischer hammerset anchor EA N is an internal thread anchor made from zinc-plated and stainless steel. The hammerset anchor is ideal for the multiple fixation of non-structural systems that do not require approved anchorage. The assembly of the internal thread anchor is extremely cost-effective thanks to the low embedment depth, fast hammerset installation, and direction-controlled screwing process. The EA N is mounted with the hammer flush to the base material. With the setting tool EA-ST, the sleeve is expanded and braced against the drill hole wall through the driving in of the internal pin. No torque should be applied to the screw to enable correct expansion.
Advantages
  • Simple hammerset installation
  • The metric internal thread allows for the use of standard screws or threaded rods for ideal adaptation in line with the intended use.
  • The hand setting tool EA-ST facilitates fast installation.

Application and Permission

Applications
  • Pipelines and ventilation ducts
  • Sprinkler systems
  • Steel constructions
  • Consoles
Building materials
  • Concrete C12/15, non-cracked
  • Concrete C20/25, non-cracked * You can find detailed information on building materials in the registration document.

Assembly Instruction

Functionality
  • The EA N is suitable for pre-positioned installation.
    • Position the hammerset anchor in the drill hole and drive in flush to the surface of the base material using the hammer.
    • The setting tool EA-ST is then used to expand the sleeve against the drill hole wall by driving in the internal pin.
    • The setting tools must sit on the edge of the anchor to ensure correct expansion.
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

ETA-approval
Anchor length 25 [mm]
Internal thread M-6
Min. bolt penetration 6 [mm]
Max. bolt penetration 12 [mm]
Packaging Folding-box
Quantity/pack 100 [St.]
GTIN (EAN-Code) 4006209901595
Legend = Permission Available — = Permission not Available
