fischer Plug S 12 PLUG

The installation-friendly nylon plug with 2-way expansion

Price : 547.00 297.00 ₹
Available Product Variants
Top Features
  • The rimless plug is suitable for pre-positioned and push-through installation.
  • Simple insertion due to the ease of pushing in the plug.
  • The anti-rotation lock prevents rotation in the drill hole. This guarantees a high degree of safety during installation.

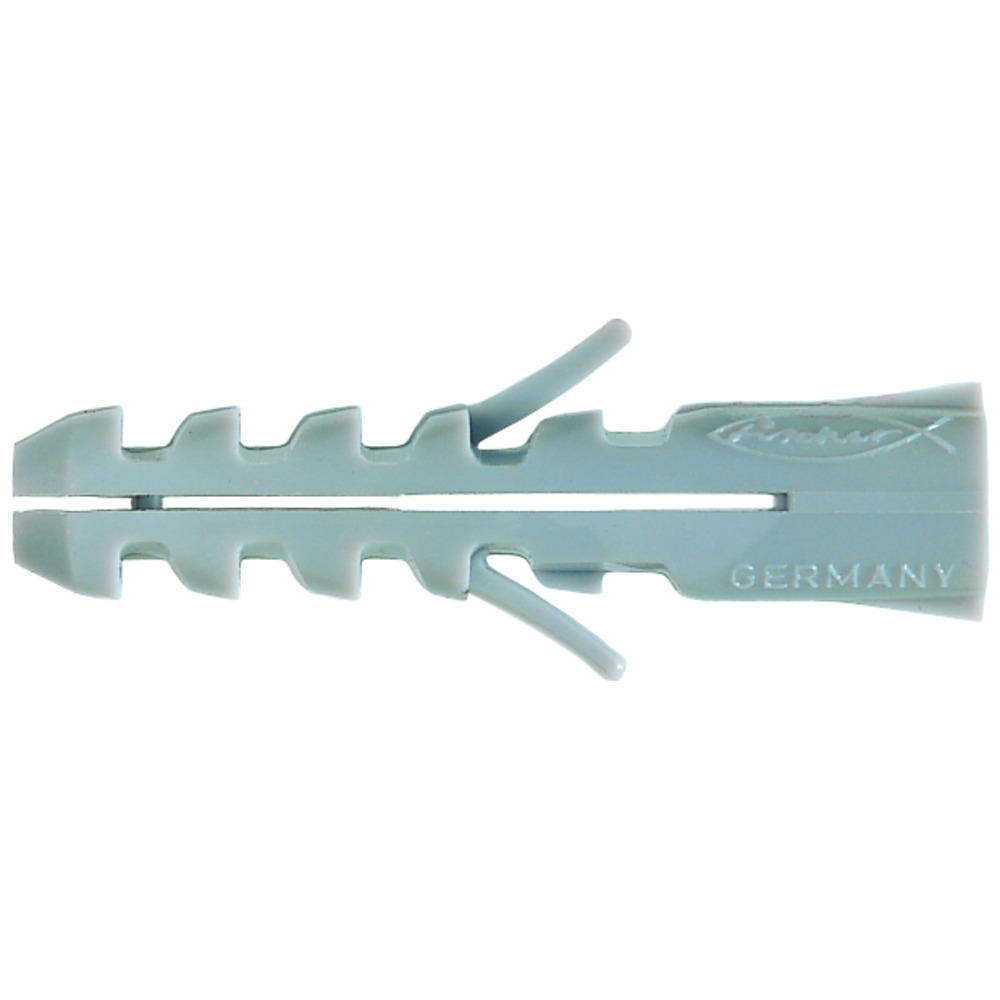

Product Picture
Application Picture
Application Picture
Product Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 50112 fischer Plug S 12 PLUG
Drill diameter 12 [mm]
Anchor length 60 [mm]
Min. drill hole depth 80 [mm]
Wood and chipboard screws 8-10 [mm]
Quantity/pack 25 [St.]
Packaging Foldingbox
GTIN (EAN-Code) 4006209501122
Price / Pack Price : 547.00 297.00 ₹

Product Description

The fischer expansion plug S is the original. The plastic fixing is made from high-quality nylon and is particularly robust. The fischer expansion plug S is offered for fixings in drill diameters from 4 to 20 mm and therefore can be used in a variety of applications. The lean plug geometry simplifies installation. The characteristic anti-rotation locks prevent the plug from rotating as the screw is tightened. Wood or chipboard screws can be used to fix the object. The fischer expansion plug S is ideal for fixing light objects in concrete and solid masonry.
Advantages
  • The rimless plug sleeve allows for the plug to be set as deep as required below the plaster to the bearing substrate to achieve the maximum load-bearing capacity.
  • As the plug only expands in two directions, it is possible to direct the expansion forces so that they run parallel to the edge of the building material by turning the plug. This allows for smaller edge distances.
  • The slimline plug geometry makes it easy to push the plug into the drill hole. For a fast and simple installation.
  • The anti-rotation lock prevents the plug rotating in the drill hole, thus guaranteeing a high level of installation safety.

Application and Permission

Applications
  • Pictures
  • Lighting
  • Skirting
  • Light shelves
  • Mirror cabinets
  • Letter boxes
  • Motion detectors
  • Information boards
  • Curtain rails
  • Electrical installations
Building materials
  • Concrete
  • Solid sand-lime brick
  • Natural stone with dense structure
  • Solid brick made from lightweight concrete
  • Solid brick

You can find detailed information on building materials in the registration document.

Assembly Instruction

Functionality
  • The expansion plug S is suitable for pre-positioned and push-through installation.
  • When turning in the screw, the expansion plug S expands in two directions, thus providing a secure anchoring in the building material.
  • The required screw length is given by the plug length + plaster and/or insulation material thickness + fixture thickness + 1 x screw diameter.
  • Suitable for wood and chipboard screws.
  • The edge distance must be at least one plug length.
  • For installations close to the edge, turn the plug so that the expansion force acts parallel to the edge.
Assembly Image
Assembly Image
Assembly Image
Assembly Image

Technical Data

Technical Data

Drill diameter 12 [mm]
Anchor length 60 [mm]
Min. drill hole depth 80 [mm]
Wood and chipboard screws 8-10 [mm]
Quantity/pack 25 [St.]
Packaging Foldingbox
GTIN (EAN-Code) 4006209501122
Legend = Permission Available — = Permission not Available
